How to Check if an Electric Wall Outlet Is Grounded
- Connect the multimeter's probes to the main body of the meter.
- Turn the multimeter to the highest AC voltage range available.
- Insert the two test leads into the hot and neutral parts of the outlet.
- Remove the black lead and put it in the ground outlet.
.
Similarly one may ask, how do you check if a socket is earthed?

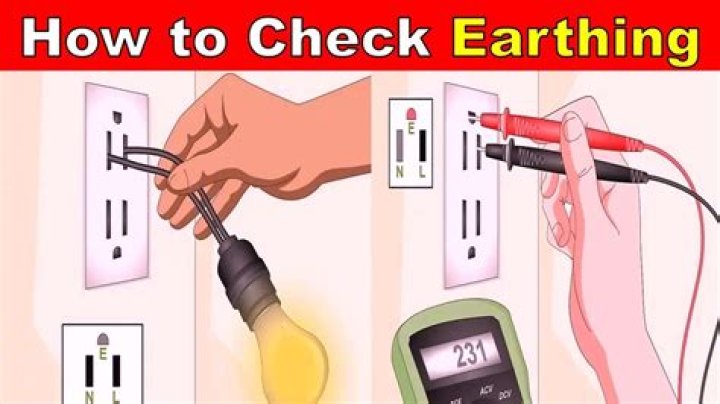

If you want to check if you have proper earthing, try plugging the wires from a lightbulb base into the ports of an outlet to see if it lights up. If you want to test more accurately, use a multimeter to take your readings instead.
how do I check my UPS earthing? The easiest way to test is with a multimeter at a socket. First we should check between phase and neutral, this will tell us that there is voltage there on the phase, and indeed that the meter is working. You need to insert one probe into the earth terminal first.
In respect to this, how do you check if a socket is earthed UK?
- Our Earthing Socket Testers will test the wiring configuration of any UK socket they are plugged into.
- Very easy to use - simply plug the tester in and turn the socket on.
- Clear and easy to read display.
- Will check the safety and wiring configuration of any socket it is plugged into, including extension leads.
How do you test for earth fault?
Isolate the complete Group start panel for a lighting division one by one. Check the Earth Fault indicator for status (still faulty or normal). If faulty, then put on the breaker which is put off earlier and isolate other group start panel for lighting circuit.
Related Question AnswersHow much voltage is between Earth and neutral?
Voltage Measurement between Neutral to Ground: A rule-of-thumb used by many in the industry is that Neutral to ground voltage of 2V or less at the receptacle is okay, while a few volts or more indicates overloading; 5V is seen as the upper limit.How do I check for electric leaks in my house?
How to Discover an Electrical Leakage at Home- Turn off the main breaker at your home's service panel (breaker box) and look at the electric meter.
- Flip off all the breakers in the panel and turn on the main breaker.
- Check the meter again; it should be motionless.
- Double-check the circuit if the meter starts to turn when you turn on a breaker.
How do you check a ground?
To test a DC circuit ground wire, remove it from the appliance to which it is connected, such as the radio, heater fan or cigarette lighter. Set your multimeter to 20 volts DC. Touch one probe to the end of the ground wire and the other probe to the appliance electrical post. Check the voltage reading.How do you socket earth?
An earth conductor insulated with green and yellow sleeving should be fitted between the earth terminal of the socket and the earth terminal of metal back boxes so that the metal box is earthed. Screw holding the faceplate to the metal backbox are not a reliable means of earthing the box.What will happen if there is no proper earthing done in building?
An 'Earthing Circuit' is provided in all household appliances to protect the user from fatal electric shock. If there were no earthing-connection, the electricity would find a path through the user's body and s/he would be electrocuted.Who is responsible for earthing a property?
The property owner is responsible for ensuring they have internal earthing to protect their home and appliances inside their homes.Which type of earthing is used in homes?
Generally, copper wire can be used as earthing lead but, copper strip is also used for high installation and it can handle the high fault current because of wider area than the copper wire. A hard drawn bare copper wire is also used as an earthing lead.How do I fix earthing in my house?
Use a multimeter to test your electrical circuits.- Shut off the main electrical power.
- Find the grounding rod driven into the ground.
- Check the ground connection clamp.
- Check the ground wire running to the copper or galvanized water service inside the house.
- Turn on the electricity at the main panel.
Does earthing increase electricity bill?
If this exposed “live” wire is allowed to touch an earthing wire (or any ground, such as metal water piping or wet earth), a short will be made that can allow an uncontrolled and continued release of electricity to flow into the ground. This results in wasted electricity and often, a very high electricity bill.What is the acceptable earth resistance value?
The NFPA and IEEE recommend a ground resistance value of 5 ohms or less while the NEC has stated to “Make sure that system impedance to ground is less than 5 ohms specified in NEC 50.56. In facilities with sensitive equipment it should be 5ohms or less.”How is earthing done at home?
An earth wire, which is of GI or tinned copper, is bolted to the plate before burying it by means of nuts, bolts and washers. The wire is made to pass through a GI pipe through which some water is poured in to increase conductivity. The earth wire is connected to the Earth point of the socket and is finally covered.What is an earthing sheet?
Earthing sheets are regular bedding sheets with a conductive material woven through them. This conductive material connects to a wire you plug into the grounding port on a standard electrical outlet (it's the third prong; that semi-circular hole beneath the other two prongs).How can you tell if a house is grounded?
How to Tell If Your House Wiring Is Grounded- Look at the outlets in your home.
- Insert the circuit tester's red probe into the smaller outlet slot.
- Insert the black probe into the larger slot in the outlet.
- Look at the indicator light.
- Repeat Steps 1 through 4 in all the outlets of your home.
