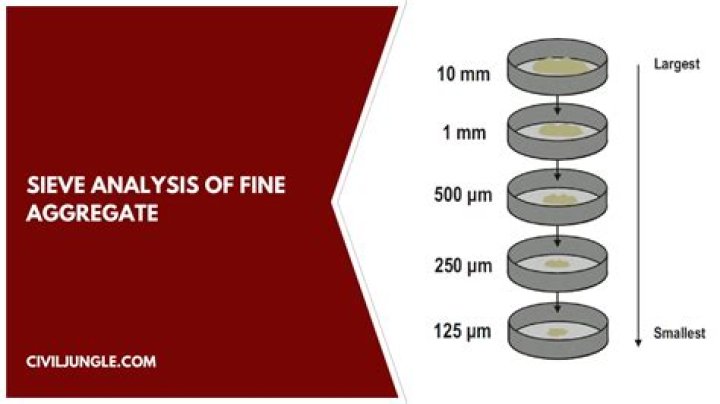

Fine aggregate means the aggregate which passes through 4.75mm sieve. To find the fineness modulus of fine aggregate we need sieve sizes of 4.75mm, 2.36mm, 1.18mm, 0.6mm, 0.3mm and 0.15mm.
.
Also, what is the maximum sieve size of fine aggregate?
A maximum size up to 40 mm is used for coarse aggregate in most structural applications, while for mass concreting purposes such as dams, sizes up to 150 mm may be used. Fine aggregates, on the other hand, have particles up to a minimum size of 0.075 mm.
Subsequently, question is, is standard sieve a size? The diameters of the sieves range from 200 to 450 millimeters. American standard sieves also known as ASTM sieves conform to ASTM E11 standard. The nominal aperture of these sieves range from 20 micrometers to 200 millimeters, however these sieves have only 8 inches (203 mm) and 12 inches (305 mm) diameter sizes.
Correspondingly, what is the size of fine aggregate?
The usual range employed is between 9.5mm and 37.5mm in diameter. - Fine aggregates are usually sand or crushed stone that are less than 9.55mm in diameter. Typically the most common size of aggregate used in construction is 20mm. A larger size, 40mm, is more common in mass concrete.
What is sieve size?
Corrosionpedia explains Sieve Sizes Large mesh openings are typically 1 inch (25.4 mm) to 1/4 inches (6.35 mm) while small mesh openings are typically specified as 3 1/2 to 400 (corresponding to the number of openings per linear inch in the sieve plate).
Related Question AnswersWhat is the maximum size of aggregate?
The smallest sieve opening through which the entire amount of aggregate is permitted to pass is called the nominal maximum size. For example, for the aggregate meeting the specification limits shown below would have a maximum size of 37.5 mm (1-1/2 in.) and a nominal maximum size of 25.0 mm (1 in).What are the different sizes of aggregate?
Below are List of Different Fine Aggregate with their Size Variation:- Stone Dust: 0.5mm – 5mm.
- Coarse Sand: 0.5mm – 2mm.
- Medium Sand: 0.25mm – 0.5mm.
- Fine Sand: 0.06mm – 0.25mm.
- Silt: 0.002mm – 0.06mm.
- Clay: < 0.002mm.
- Fine gravel: 4mm – 8mm.
- Medium gravel: 8mm – 16mm.
What is the density of aggregate?
The relative density (specific gravity) of an aggregate is the ratio of its mass to the mass of an equal volume of water. Key Features: Most aggregates have a relative density between 2.4-2.9 with corresponding particle (mass) density of 2400-2900 kg/m3 (150-181 lb/ft3).What is meant by fine aggregate?
Things You Should Know About Fine Aggregate Aggregate is the granular material used to produce concrete or mortar and when the particles of the granular material are so fine that they pass through a 4.75mm sieve, it is called fine aggregate.Is sieve No 480 size?
Fine aggregate sieve No. 480 [4.75mm] and retained on I.S. sieve No. 5 [0.05mm] is considered as fine aggregate e.g. natural sand, surkhi etc.What size is a number 4 sieve?
Particle Size Conversion Table| Sieve Designation | Nominal Sieve Opening | |
|---|---|---|
| Standard | Mesh | inches |
| 4.76 mm | No. 4 | 0.187 |
| 4.00 mm | No. 5 | 0.157 |
| 3.36 mm | No. 6 | 0.132 |
How do you classify aggregates?
Aggregates are classified according to shape into the following types- Rounded aggregates.
- Irregular or partly rounded aggregates.
- Angular aggregates.
- Flaky aggregates.
- Elongated aggregates.
- Flaky and elongated aggregates.
Is sieve a number?
The sieve number denotes the number of holes present in the sieve within a one-inch length of the sieve mesh. For example, consider the Number 4 sieve which has a mesh opening of 4.76 mm.What are the 4 main types of aggregates?
The Different Types Of Aggregate. The categories of aggregates include gravel, sand, recycled concrete, slag, topsoil, ballast, Type 1 MOT, and geosynthetic aggregates (synthetic products commonly used in civil engineering projects used to stabilise terrain).What is fine aggregate used for?
Fine aggregate is used in making thin concrete slabs or other structural members and where a smooth surface is desired; coarse aggregate is used for more massive members.What is Type 2 aggregate?
A graded aggregate from certified sources, typically crushed stone, crushed slag, crushed concrete or well-burnt non-plastic shale and sand and gravels, used as granular sub base. Its correct name is 'DTp Type 2 granular sub base' as defined by the Department of Transport Specification for Highway Works, Clause 804.Which type of aggregate gives maximum strength?
To obtain high strength concrete, coarse aggregate size is usually held to a maximum size of 19 mm, but additional cement is required for the additional surface area. The fine aggregate can generally contain less material passing 300 um and 150 um sieve because of the higher cement content.What are the different types of aggregate?
Types of Aggregates- Crushed Stone and Manufactured Sand. These products are obtained by mining rock and breaking it down to a preferred size.
- Gravel. Gravel deposits are produced through a natural process of weathering and erosion.
- Sand. Sand occurs naturally and is composed of fine rock material and mineral particles.
- Recycled Concrete.
How do you determine aggregate quality?
Field Tests for Aggregate- Surface Moisture Content & Absorption. The surface moisture in the aggregate, influences the water cement ratio, strength and durability of the mix.
- Silt Content Test for Sand. Silt content test.
- Bulking of Sand.
- Sieve Analysis.
- Fineness Modulus.
Which type of aggregate have minimum voids?
1. Rounded Aggregate. The aggregate with rounded shape has the minimum percentage of voids ranging from 32 to 33%. It gives minimum ratio of surface area to given volume and hence requires minimum water for lubrication.What are the properties of fine aggregate?
Although some variation in aggregate properties is expected, characteristics that are considered include:- grading.
- durability.
- particle shape and surface texture.
- abrasion and skid resistance.
- unit weights and voids.
- absorption and surface moisture.
