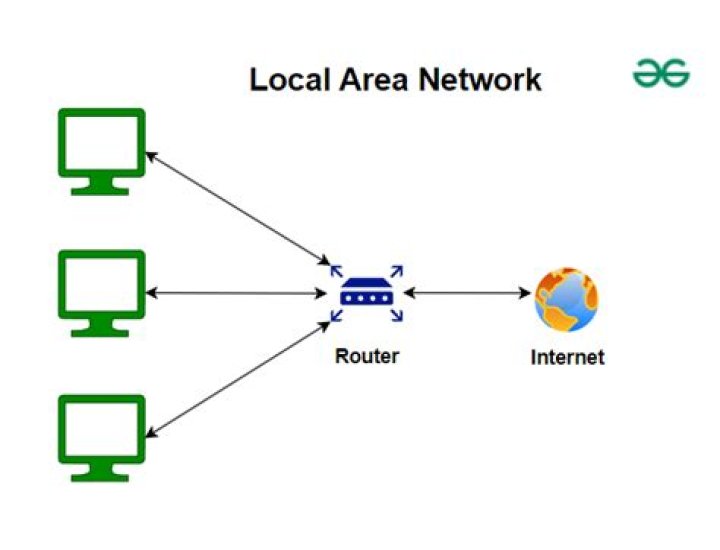

LAN segment. A section of a local area network that is used by a particular workgroup or department and separated from the rest of the LAN by a bridge, router or switch.
.
Keeping this in consideration, what is a LAN segment VMware?
A VMware LAN Segment is a private network that is shared by other virtual machines.
Similarly, what are the possible reasons for segmenting a LAN? Segmentation can help to expand the LAN beyond its limitations, or help the LAN perform more efficiently within its limits in certain specific ways.
- Reducing Congestion Through Segmentation.
- Improving Security with Segmentation.
- Physical Extension of the Network.
- Damage Limitations Using Segmentation.
Likewise, people ask, what three devices are used segment a LAN?
Explanation: Switches and bridges forward broadcast but router do not forward broadcast. Switches, bridges and routers can segment an Ethernet collision domain.
What is an Ethernet segment?
An Ethernet segment is a group of networked devices connected to a single Ethernet gateway. The Ethernet part refers to the wired or physical connection within network components.
Related Question AnswersHow do I connect a virtual machine to a local network?
Select the virtual machine and select VM > Settings. On the Hardware tab, select Network Adapter. Select Bridged: Connected directly to the physical network. If you use the virtual machine on a laptop or other mobile device, select Replicate physical network connection state.What is replicate physical network connection state?
When the Replicate physical connection state option is selected, the IP address is automatically renewed when you move from one wired or wireless network to another. This setting is useful for virtual machines than run on laptops or other mobile devices.What is host only network in VMware?
The “host only” virtual network connects the virtual machine to the “host only”. In other words, the VM can only communicate with the host that is running VMware Workstation but it has no LAN network access, no Internet access, and no communication to other VMs that are running on the same host under Workstation.How do I assign an IP address to a VMware virtual machine?
Just add the Mac Address of the Virtual Machine you wish to set a Static IP Address for by going to Vmware Workstation / Player, Settings > Network Adapter > Advanced There you will see the MAC Address And Copy, Then Edit The Fixed Address With How You Configure Your NAT.How do I setup a VMware workstation network?
Using the Virtual Network Editor in VMware Workstation (1018697)- Power on the virtual machine.
- Choose the virtual machine.
- Click VM > Settings.
- On the Hardware tab , click on the adapter you need to modify.
- Select the network type to use: Bridge mode:This connects the virtual network adapter directly to the physical network.
- Click OK.
What is a network segment diagram?
Network Segments A network segment is defined as two or more devices that communicate with each other at OSI layer 2 (L2) using L2 LAN connectivity devices with no routing at L3 between them. ( Microsoft Network Architecture Blueprint [MSNAB 05]) Network segments may be physical or logical (virtual).How do you segment a network?
Tips for Each Phase of Segmenting your Network- Inventory systems. Classify and identify sensitive data and where it lives.
- Identify and group similar systems and data classifications.
- Identify who needs to use the data.
- Design segmented network.
- Capital expenses.
Which device is used to segment a network?
Network Segment Definition A network segment is a portion of a computer network that is separated from the rest of the network by a device such as a repeater, hub, bridge, switch or router.What is an IP segment?
Segmenting Computer Networks Network Segmentation is the process of dividing a network into multiple smaller networks (subnets/segments). IP Subnetting provides a way to uniquely define the subnet and the specific device address inside a computer network.What is segment length in networking?
The maximum segment length is based on the signal attenuation of a particular media in terms of dB loss per unit length - for each meter of cable. The signal is reduced by a certain amount due to various electromagnetic effects. Attenuation characteristics are often highly frequency dependent.What is VLAN in networking?
A virtual LAN (VLAN) is any broadcast domain that is partitioned and isolated in a computer network at the data link layer (OSI layer 2). VLANs allow network administrators to group hosts together even if the hosts are not directly connected to the same network switch.What is segment in transport layer?
Segment: If the transport protocol is TCP, the unit of data sent from TCP to network layer is called Segment. Datagram: This is used in 2 layers. If the network protocol is IP, the unit of data is called Datagram. TCP Packet, UDP Packet, IP Packet etc.What are the advantages of separating an Ethernet LAN using a bridge?
A bridge managed incoming traffic and reduces bandwidth waste by preventing all unnecessary flow of data between network segments. This way it can effectively ensure the optimal performance on both sides of the network segment.How does switch helps to segment the network?
Switches create address tables to handle network traffic. They have the capability to intelligently monitor the network traffic. Switches can provide nonblocking service, which allows multiple conversations between two ports to occur simultaneously. Switches create many collision domains on the same segment.What are the benefits of network segmentation?
Some key benefits of network segmentation include:- Slowing Down Attackers. One of the biggest benefits of using network segmentation is that it can buy you extra time during an attack.
- Increasing Overall Data Security.
- Enabling Implementation of a Policy of Least Privilege.
- Reducing Damage from Successful Attacks.
