Crossover Frequency. The crossover frequency is the frequency at which sound transitions from one speaker to another. The crossover frequency for each speaker is generally set in the AV receiver by a processor, which filters low frequency content away from the speaker channels and redirects it to the subwoofer channel..
Correspondingly, what is a good crossover frequency?
The most common crossover frequency recommended (and the THX standard) is 80 Hz. On-wall or Tiny 'satellite' speakers: 150-200 Hz. Small center, surround, bookshelf: 100-120 Hz. Mid-size center, surround, bookshelf: 80-100 Hz.
Beside above, what does the crossover frequency represent? A crossover works using the principle of electronic filters to filter out (block) a range of musical sound frequencies as desired. A crossover frequency is the sound frequency that starts the cutoff point for crossover filters. It's the frequency point at which signals are reduced by 3 decibels (represented as -3dB)
Thereof, what is a crossover for speakers?

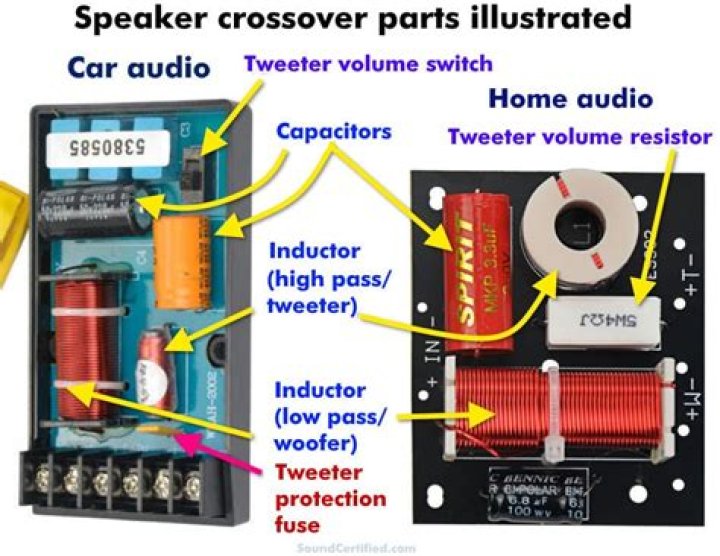

A crossover is an electronics device that takes a single input signal and creates two or three output signals consisting of separated bands of high-, mid-, and low-range frequencies. The different bands of frequencies feed the different speakers, or “drivers,” in a sound system: tweeters, woofers, and subwoofers.
Does a crossover improve sound quality?
Head units, amplifiers, and speakers get all the good press, but that doesn't mean crossovers aren't important as well. By making sure that only the right frequencies reach the right speakers, you can effectively reduce distortion and help improve the overall sound quality of a car audio system.
Related Question Answers
What Hz is best for bass?
Summary Table
| Frequency Range | Frequency Values |
| Sub-bass | 20 to 60 Hz |
| Bass | 60 to 250 Hz |
| Low midrange | 250 to 500 Hz |
| Midrange | 500 Hz to 2 kHz |
Is higher Hz better sound?
Frequency response is the range of bass, mids and treble. Some headphones offer wider ranges (for example, 5 to 33,000 Hz), but better frequency response does not always mean better sound quality. Below 20 Hz bass frequencies can be felt more so than heard, treble frequencies over 20,000 Hz are not always audible.Should HPF and LPF be the same?
LPF is controls how high the sub will go not the low. A HPF on a sub amp will control how low it goes and double as the SSF. A HPF allows everything above it to go through say for instance it was 25hz, your sub will see 25hz and above. Now the LPF will control how high your sub will actually go like say 80hz.How do you adjust a crossover?
Setting the Crossover - Set the crossover point 10 Hz higher than the low end of your speaker's tolerance range.
- If you don't know the frequency range of your speaker, use a subwoofer matching tool.
- Listen for smooth transitioning between the subwoofer and the speakers.
What is a good frequency range for speakers?
If a speaker responds within those two values, in theory, they should have all the information humans can hear. But most speakers do not reach as low as 20 Hz and many lower quality speakers do not reach as high as 20Khz. You do have loudspeakers that go way beyond 20 Khz and a few that can respond as low as 20Hz.Should I set my speakers to large or small?
The calibration recommended setting the speakers to large (B&W CM10S2 front and 683 rear) all around. Most advice, though, recommends setting speakers in a 5.1 or 7.1 setup to small, leaving the subwoofer to handle the majority of low frequencies. Experimenting with your room and your ears is still the best advice.What is mid range sound setting?
A mid-range speaker is a loudspeaker driver that reproduces sound in the frequency range from 250 to 2000 Hz. It is also known as a squawker. Most professional concert mid-range drivers are compression drivers coupled to horns.Do you need a crossover for component speakers?
Component speaker sets come with separate outboard crossovers, many with tweeter level selectors. If you want to run an "active" system, however, you'll need a more sophisticated crossover. In an active sound system each driver (tweeter, woofer, sub) has its own channel of amplification.What are the different types of speakers?
The four main types of speaker found in the home these days are traditional loudspeakers, in-wall/ceiling speakers, soundbars and subwoofers. Each type of speaker serves a different purpose and is useful for different applications.What crossover frequency should I use for subwoofer?
What is the recommended crossover frequency for a subwoofer? For THX Certified and non THX Certified home theater systems, 80 Hz is the recommended setting. However, you can set the crossover (LPF) between 80 Hz - 120 Hz based on which setting sounds best for your system.How do component speakers work?
A component speaker is a car audio speaker matched for optimal sound quality. Typically a pair of tweeters and mid-bass drivers are matched with a crossover to limit the frequency range each speaker must accurately reproduce. This article about an automotive part or component is a stub.What is LPF for LFE?
This is the low pass filter (LPF) setting of the low frequency effects (LFE) channel. This is the high frequency cutoff point for the LFE, also known as the . 1 channel in a 5.1/6.1/7.1 surround source. In practice this should always be set to 120Hz since the LFE channel supports information up to that frequency.Do 2 way speakers need a crossover?
Active crossovers always require the use of power amplifiers for each output band. Thus a 2-way active crossover needs two amplifiers—one each for the woofer and tweeter. This means that an active crossover based system will often cost more than a passive crossover based system.Do 3 way speakers need a crossover?
3-way speakers need a well-built crossover to worth it, unlike a 2-way system that can easily be powered by any low-quality crossover. Not ideal for coaxial systems. There is very little advantage to gain from 3-way coaxial speakers.Can you connect tweeters to speakers?
Many people think you can wire a tweeter directly to a speaker and that assumption is partially correct. You'll also need a frequency crossover to complete the installation and prevent damage to the tweeter because it's not meant to receive the same amount of power as the speaker or woofer.What's the difference between coaxial and component speakers?
Coaxial speakers are simply car speaker systems in which all the components are combined in one structure. Often, the framework will consist of a woofer and a tweeter attached somewhere on the top or on a pole running across the middle of the woofer. View component car speakers as a system with separate drivers.Is active crossover better than passive?
They are called passive since they don't require any kind of external power source to run. A passive crossover is powered by the audio signal that streams through it. This type of crossover utilizes inductors and capacitors. In contrast, active crossovers can adjust with ease to changing frequency levels.Can powered speakers be used as passive speakers?
But if you want to use powered speaker as passive, in most case, no you can't. Todays most power amplifier has single full-band output. When connected to multiway speakers, signal will be separated to two units using frequency band separater in the unit.Are 2 Way Speakers good?
Without the ability to tune each speaker to your own needs, you're just going to end up with a ton of treble. 2-way speakers tend to “bleed” better. This crossover of sound frequencies is actually pretty desirable and it's the reason that many super high-end speakers are still 2-way.
