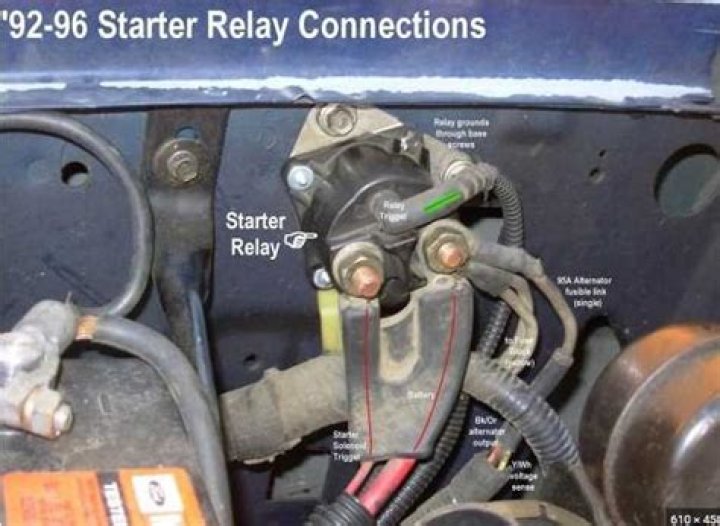

Most often, a true starter relay is a small black cube plugged into an electrical fuse/relay box in the engine compartment, whereas a starter solenoid is (in most cases) attached directly to the starter on the engine (although it is sometimes located elsewhere in the engine compartment).
.
Just so, where is the starter relay located?
In most vehicles, the ignition relay is located in the long black box of your vehicle that you can find under the hood. The box usually has a diagram on it which will help you easily locate the ignition relay inside it once you open it up. The box is also called the fuse box.
One may also ask, what happens when your starter relay goes out? If your starter relay has gone bad, the electrical signal will never make it from the battery to the starter motor. As a result, your engine won't turn over - no matter how many times you turn the key. A faulty relay often produces an audible clicking sound when you turn your car.
Moreover, what are the symptoms of a bad starter relay?
Here are some symptoms of a bad or failing starter relay
- Vehicle does not start.
- Starter stays on after engine started.
- Intermittent issues starting the vehicle.
- Clicking sound coming from the starter.
Is it the starter or starter relay?
Most often, a true starter relay is a small black cube plugged into an electrical fuse/relay box in the engine compartment, whereas a starter solenoid is (in most cases) attached directly to the starter on the engine (although it is sometimes located elsewhere in the engine compartment).
Related Question AnswersDoes the starter have a fuse?
Often there is a fuse and relay for the car starter in the fuse box but sometimes they will have external fuse on the fuse line or close to the car battery. The starter motor fuse is usually big and it will not be in the fuse box.How much is a starter relay fuse?
The average cost for a starter relay replacement is between $53 and $62. Labor costs are estimated between $30 and $39 while parts are priced at $23. Estimate does not include taxes and fees.How do I know if my starter or starter relay is bad?
Clicking sound coming from the starter This symptom is common when your battery is low on amps, but is also an indicator that your starter relay is not sending a full signal. However, there are some occasions when a damaged starter relay will cause the starter to make a clicking sound when you turn the key.What is the starter relay fuse?
A starter relay, commonly known as a starter solenoid, is the part of a vehicle which switches a huge electric current to the starter motor, in light of a little control current, and which in turn sets the engine in motion.What is wrong when you turn the key and nothing happens?
If nothing happens when you turn the ignition key to the "Start" position, it means that the starter motor doesn't turn over the engine. Most commonly this could be caused by a dead battery; here is How to check the battery. The starter solenoid control wire could have a bad connection.Can a blown fuse prevent car from starting?
Usually, a blown fuse just causes a minor car electrical problem, like backup lights or interior lights not working, not being able to use your radio, losing a turn signal, or some of your climate control features not functioning properly. In rare cases, though, a blown fuse can mean that your car won't start.Will a bad starter solenoid still click?
If you do hear clicking, the solenoid may be engaging, but not sufficiently. Hearing clicking without the starter motor moving means the solenoid is transferring the electricity, but it may not be enough. No clicking means the solenoid is not properly engaging, but this may also be due to a dead battery.What happens when the starter goes out?
One of the symptoms of a bad starter is a clicking noise when you turn the key or push the start button. However, a starter can die without making any sound at all, or it may announce its impending death with whirring and grinding noise—so listen up!Can a relay stop a car from starting?
Car not starting If the relay fails it will cut off power to fuel pump and ignition system, which will result in a no power, and therefore no start condition.How do you test an ignition switch?
Put the ignition key into the ignition switch and crank the engine. If the engine cranks, then your ignition switch is obviously working fine. If the engine does not crank, and you hear a "click" when you first turn the key to the "III" position, then your ignition switch is not the problem.How do you troubleshoot a starter relay?
You can also check for resistance by placing the red probe of your multimeter to the ignition circuit terminal and the other to the ground terminal. If the voltage you read is not 12V when the ignition switch is turned on, the starter relay is faulty. Another way to test for resistance by use of a wire jumper.How do you test a refrigerator starter relay?
How to Test a Refrigerator Start Relay- Turn off electrical power to your refrigerator by turning off the appropriate circuit breaker or by unplugging the unit.
- Locate the start relay.
- Take off the cover to the box by loosening it with the appropriate screwdriver, if necessary.
- Find the "s" and "m" plug-type terminals and the "L" slip-on terminal.
