Sediment traps collect dirt, rust, and other debris in the gas line before it gets to the control valve of an appliance. Drips legs are used to collect water droplets. They are located in low areas of a gas line. Drip legs are only needed if the gas is wet.

.

Besides, what is the purpose of a drip leg on a gas line?

“Drip leg” and “sediment trap” are often used interchangeably, but they are really two different things. Drip legs (technically call just a “drip”) are installed to collect condensation in a gas piping system, so they are installed in a low point to prevent condensation from running back into the gas meter.

Similarly, how long should a gas drip leg be? Must be made of a tee fitting with a capped nipple, a minimum of 3 inches in length, in the bottom opening of the run of the tee. Provide a 90-degree change of direction of gas flow, to help prevent sediment from flowing over the trap.

Also Know, does a gas stove need a sediment trap?

Gas stoves or cook tops or fireplaces for instance are not required to have them. The purpose of a sediment trap is to prevent any sediment that may be in a gas supply line from entering into the controls of a heater or water heater.

Does each gas appliance need a drip leg?

Drip legs are only needed if the gas is wet. Most gas is dry, therefore drip legs are not often required.

Related Question Answers

Do you need a drip leg with propane?

Drip legs for propane system. Drip legs or sediment traps (the technical term) are supposed to be installed as close as possible to the inlet of every appliance (as required). Per NFPA 54 the following specifically do not need one: Illuminating appliances (gas lamps), ranges, clothes dryers and outdoor grills.

What is the yellow gas line called?

The gas piping is known as corrugated stainless steel tubing, or “yellow CSST.” CSST is a flexible, stainless steel pipe used to supply natural gas and propane in residential, commercial and industrial structures.

How much does it cost to install a drip leg?

The average cost to install a drip leg is $75 to $150, which is a plumber's minimum charge. For multiple installs, costs range from $33 to $89 per drip leg. Drip legs capture moisture so that it doesn't enter the control unit. Although small pieces of sediment may get through a drip leg.

How do you install a gas line?

Steps
  1. Buy the right gas pipes and fittings for the job.
  2. Turn off the gas to your house.
  3. Extend your existing gas line by fitting the valves and pipe lengths you need to add a gas line that will reach your new appliance.
  4. Use a flexible pipe to connect the end of your new gas line to the appliance.
  5. Test your line is airtight.

What is drip leg in piping?

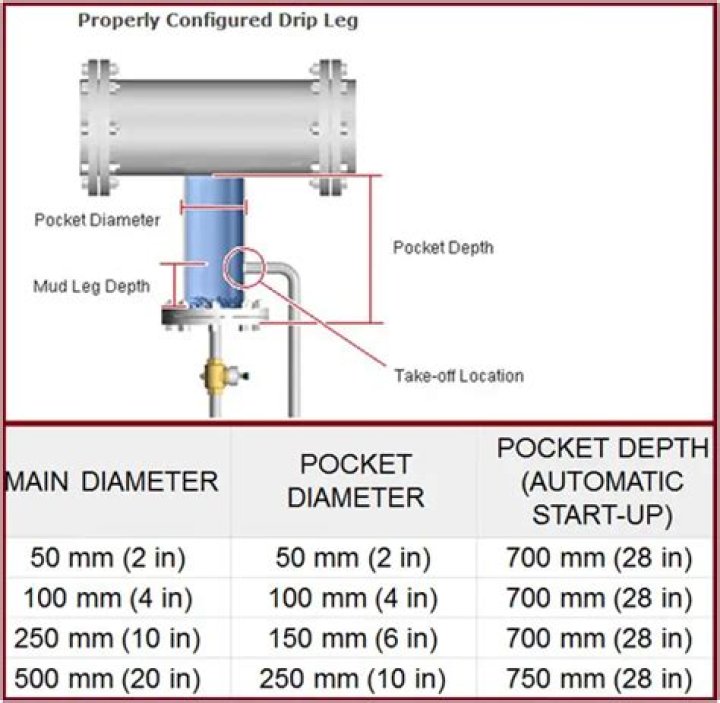

Drip Legs are vertical piping pockets located along the steam main pipe where condensate is collected for the purpose of draining from the system. ANSI/FCI Standard 13-1: Determining Condensate Loads to Size Steam Traps refers to a Drip Leg as a Drip Point.

What does dirt leg mean?

A dirt-leg is a T shaped sediment trap in a gas line designed to catch any. debris in the line before it goes into the appliance.

Is propane a wet gas?

Wet gas, natural gas that contains an appreciable proportion of hydrocarbon compounds heavier than methane (e.g., ethane, propane, and butane). Alternatively, the propane and other lighter compounds may be marketed as liquefied petroleum gas (LPG), and heavier hydrocarbons may be made into gasoline (petrol).

Can you use flexible gas line water heater?

Flexible gas line They're easier to connect than steel pipe, but they're not allowed everywhere, so check with your inspector.

How much does a sediment trap cost?

The total costs for installation of a sediment trap will vary depending on the type of flow control structures used and the size of the trap. If growers excavate the trap on their own, the total costs usually range from $600 - $1500, depending on the type of outlet structure used.

What is a drip leg on a hot water heater?

Sediment Trap and Drip Leg on Water Heaters: Purpose and Proper Installation. Sediment traps (sometimes mistakenly referred to as drip legs) are designed to catch sediment, in natural gas, before it enters into the water heater or furnace gas valve.

What is drip gas?

Noun. drip gas (plural drip gases) A naturally occurring form of gasoline found near many oil and natural gas wells. It can be used in vehicles, but doing so is illegal and has been reported to cause damage to engines.

How do you install a gas hot water heater?

charcoal starter & lighters
  1. Step 1: DRAIN THE TANK.
  2. Step 2: DISCONNECT THE GAS LINE AND WATER LINES.
  3. Step 3: DETACH THE GAS EXHAUST FROM THE FLUE HAT.
  4. Step 4: SET THE NEW WATER HEATER IN PLACE.
  5. Step 5: INSTALL THE HEAT TRAP FITTINGS.
  6. Step 6: INSTALL WATER LINE CONNECTIONS.
  7. Step 7: CONNECT THE GAS SUPPLY LINE.
