What is wide band pass filter?

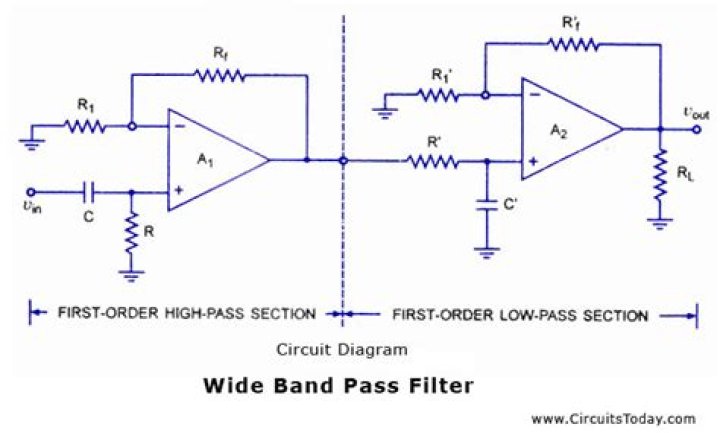

Wide Band Pass Filter If the value of quality factor is less than ten, then the pass band is wide, which gives us the larger bandwidth. This band pass filter is called Wide Band Pass Filter. In this filter the high cut-off frequency must be greater than the lower cut-off frequency.

.

Also to know is, what is a band pass filter used for?

A bandpass filter is an electronic device or circuit that allows signals between two specific frequencies to pass, but that discriminates against signals at other frequencies. Bandpass filters are used primarily in wireless transmitters and receivers.

Furthermore, what is the bandwidth of a filter? Passband bandwidth is the difference between the upper and lower cutoff frequencies of, for example, a band-pass filter, a communication channel, or a signal spectrum. Baseband bandwidth applies to a low-pass filter or baseband signal; the bandwidth is equal to its upper cutoff frequency.

Then, what is meant by band pass filter?

A band pass filter is an electronic circuit or device which allows only signals between specific frequencies to pass through and attenuates/rejects frequencies outside the range. Band pass filters are largely used in wireless receivers and transmitters, but are also widely used in many areas of electronics.

How is band pass filter calculated?

This geometric mean value is calculated as being ƒr ² = ƒ_(UPPER) x ƒ_(LOWER). A band pass filter is regarded as a second-order (two-pole) type filter because it has “two” reactive components within its circuit structure, then the phase angle will be twice that of the previously seen first-order filters, ie, 180^o.

Related Question Answers

How does a band stop filter work?

A band-stop filter works to screen out frequencies that are within a certain range, giving easy passage only to frequencies outside of that range. Also known as band-elimination, band-reject, or notch filters. Band-stop filters can be made by placing a low-pass filter in parallel with a high-pass filter.

What are the different types of filters?

Four Major Types of Filters The four primary types of filters include the low-pass filter, the high-pass filter, the band-pass filter, and the notch filter (or the band-reject or band-stop filter).

What is meant by active filter?

An active filter is a type of analog circuit implementing an electronic filter using active components, typically an amplifier. Amplifiers included in a filter design can be used to improve the cost, performance and predictability of a filter.

What is cutoff frequency of bandpass filter?

A low Q factor means that the pass band is wide, and therefore allows a wider range of frequencies to pass through the filter. Generally, the cutoff frequency is the frequency where the amplitude of the filter is 3dB less than the pass band's amplitude.[i]

What is Q in bandpass filter?

The “Q” of a band pass filter is the ratio of the Resonant Frequency, ( ƒr ) to the Bandwidth, ( BW ) between the upper and lower -3dB frequencies and is given as: Then for our simple example above the quality factor “Q” of the band pass filter is given as: 346Hz / 400Hz = 0.865.

What is a narrow band filter?

In normal color imaging, three filters (red, green, and blue) are used to separate the primary colors of the visual spectrum. Narrowband filters instead capture only a very small part of the spectrum. They are said to have a narrow bandpass. The bandpass is simply how much of the spectrum the filter allows to pass.

What is the center frequency of a bandpass filter?

The center frequency represents the midpoint frequency in between the -3dB cutoff frequencies of a bandpass or notch filter. The -3dB cutoff points are also referred to as the lower cutoff frequency and upper cutoff frequency of a filter circuit.

What is pass band gain?

The passband gain of a filter is simply the amplification factor for signal components that are in the filter's passband.

Whats is a filter?

1. The most common filter is a software filter that reads data in and manipulates the data to fit another output pattern or removes data that may not be needed. For example, spam filters help filter unwanted e-mail from reaching your Inbox. Hardware devices can also be filters.

What is active high pass filter?

Active High Pass Filter. A first-order (single-pole) Active High Pass Filter as its name implies, attenuates low frequencies and passes high frequency signals. It consists simply of a passive filter section followed by a non-inverting operational amplifier.

What do you mean by modulation?

Modulation is the process of converting data into radio waves by adding information to an electronic or optical carrier signal. A carrier signal is one with a steady waveform -- constant height, or amplitude, and frequency.

What is bandwidth formula?

Bandwidth, Δf is measured between the 70.7% amplitude points of series resonant circuit. BW = Δf = f_h-f_l = f_c/Q Where: f_h = high band edge f_l = low band edge f_l = f_c - Δf/2 f_h = f_c + Δf/2 Where f_c = center frequency (resonant frequency)

What is the 3dB bandwidth?

bandwidth expressed in 3dB is called 3dB bandwidth. you are asking the significance of 3dB point. it is the point at which the power at output is half than input. it is a convention that till the power at output drops to half, performance can be tolerated, so the bandwidth is define by 3dB point.

What is a band stop filter used for?

In signal processing, a band-stop filter or band-rejection filter is a filter that passes most frequencies unaltered, but attenuates those in a specific range to very low levels. It is the opposite of a band-pass filter. A notch filter is a band-stop filter with a narrow stopband (high Q factor).

Why bandpass filter is used?

Applications. Bandpass filters are widely used in wireless transmitters and receivers. The main function of such a filter in a transmitter is to limit the bandwidth of the output signal to the band allocated for the transmission. This prevents the transmitter from interfering with other stations.

How does band pass filter work?

A bandpass filter circuit/device is used to allow only a pre-defined set of frequencies to pass through it. It will filter of all the frequency that is below the set value and above the set value. It is a combination of a high pass filter and a low pass filter.

What is bandwidth in computer?

In computer network and computer science, digital bandwidth or just bandwidth means the amount of data that can be sent from one point to another in a certain period of time. It is measured as a bit rate expressed in bits per second (bits/s) or multiples of it (kbit/s Mbit/s etc.)

What is bandwidth and frequency?

Bandwidth and frequency both are the measuring terms of networking. The basic difference between bandwidth and frequency is that bandwidth measures the amount of data transferred per second whereas the frequency measure the number of oscillation of the data signal per second.

What is the bandwidth of high pass filter?

If someone tells you that a high-pass filter has a 200 kHz bandwidth, feel free to reply with a blank stare. If we apply the low-pass-filter logic to a high-pass response, the band extends from the –3dB frequency to infinity.
